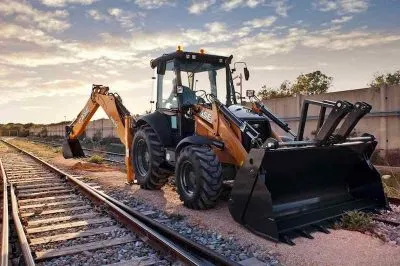

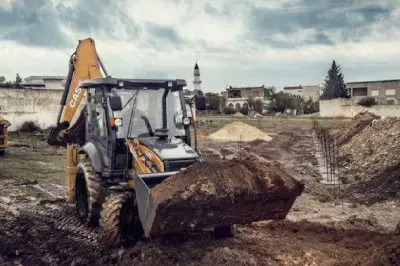

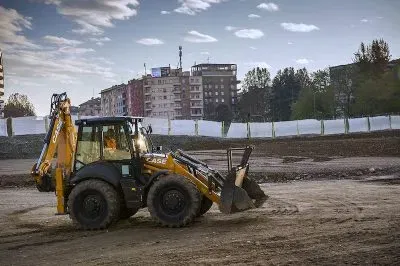

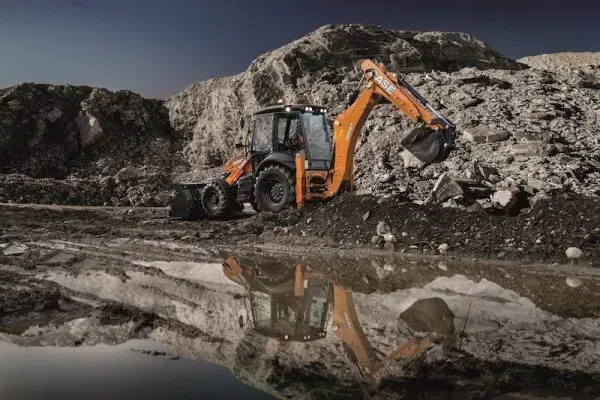

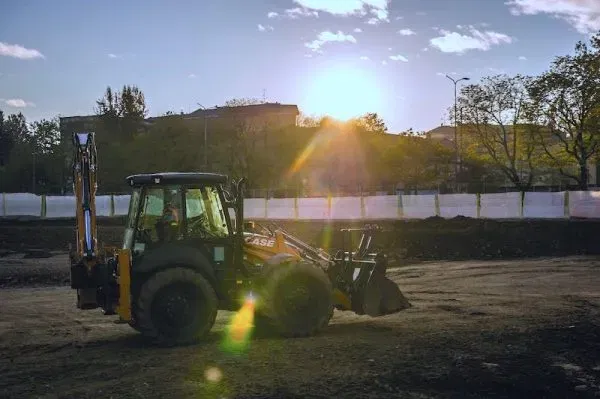

T-SERIES BACKHOE LOADERS
Re-engineered from the ground up, the CASE T-series backhoes are designed to lighten your workload by increasing your machines’ efficiency. With best-in-class special features and increased reach and lift capacity, the T-series can make the difference between just getting the job done, and keeping your customers coming back.
T-SERIES BACKHOE LOADERS
Re-engineered from the ground up, the CASE T-series backhoes are designed to lighten your workload by increasing your machines’ efficiency. With best-in-class special features and increased reach and lift capacity, the T-series can make the difference between just getting the job done, and keeping your customers coming back.
ENGINE A POWERFUL HEART
COST SAVINGS

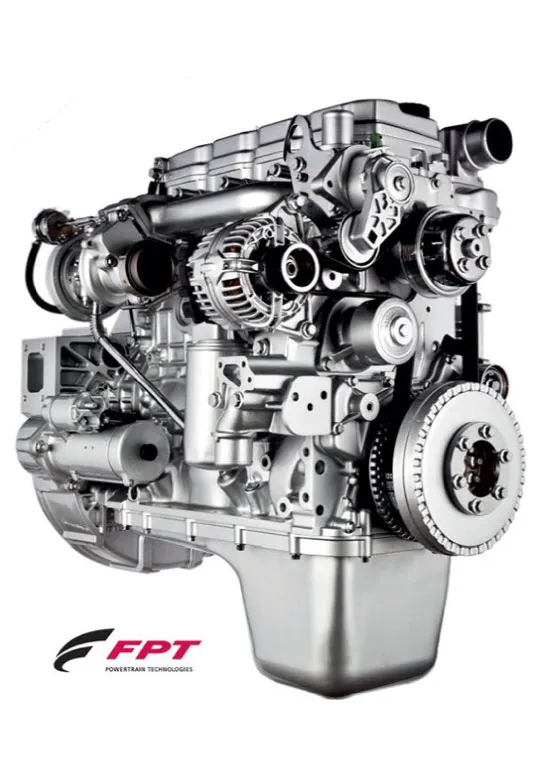

FPT Multijet Engine
The 4.5 lt. FPT engine delivers big performance in a small package and the lowest maintenance cost in the market:
- The air intake system with centrifugal pre-filter reduces the cleaning intervals
- High turbulence piston and air intake manifold
- High-pressure multi-injection common rail for a perfect air-fuel mix and greater burning efficiency
- Viscous fan: no power is wasted with its low cooling demands
SAFE AND EASY MAINTENANCE
- Oil and filter checkpoints are easily accessible on the left side of the bonnet. The front opening provides the operator with a full view of the engine components.
- The anti bumping frame surrounding the radiators prevents damage if the machine hits an obstacle at speeds up to 5 km/h, reducing unforeseen maintenance costs due to cracks in the radiators.
CASE STANDARD WARRANTY – 3 YEARS / 3,000 HOURS
When the unexpected occurs, you need to know your equipment is protected
We understand the importance of your machinery being in good working order and in addition to the STANDARD WARRANTY, PROCover 2.0 plans can be customised to meet individual needs.
PROTECTED BACKHOE OPERATION
The King’s DNA
- The exclusive outer extendahoe is part of the CASE DNA: all the components in contact with the soil are protected against impact and material accumulation
- The gripper teeth provide perfect material retention especially when working on pipe placement
- The curved main boom provides greater digging ability and makes it easier to load a truck
- Pilot controls automatically deactivate when not in use for improved safety. They are immediately reactivated at the touch of a switch
LOAD SENSING HYDRAULIC SYSTEM
Modulated power
The load sensing hydraulics provide only the precise amount of oil for each task, even when the engine is running at low rpm. This results in fuel savings of up to 14% compared to traditional gear pumps. CASE is the only Backhoe loader manufacturer offering a closed hydraulic centre, whatever the choice of pump. Closed hydraulics enable simultaneous movements independent from work load. They also deliver constant power, better operator controllability and fast cycles.
Make an Enquiry

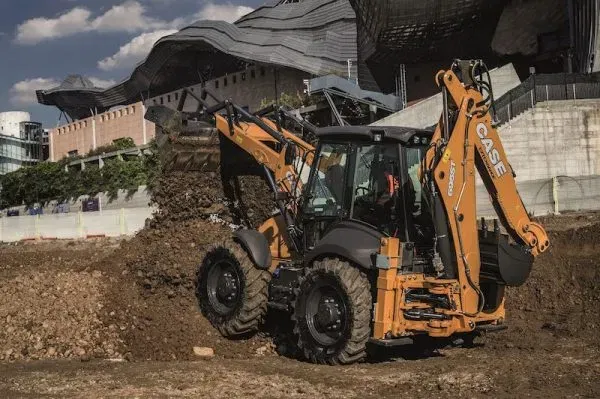

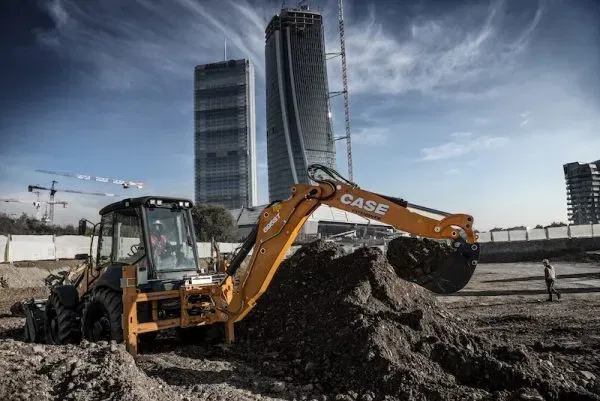

“IN-LINE” BACKHOE GEOMETRY
No Stress power
CASE has enriched the machinery, introducing a new backhoe design with “In-Line” cylinder geometry and inner extendahoe. The aligned cylinders ensure perfect visibility across the boom and reduce the structure bending stress distribution. This is the typical solution adopted on large excavators where productivity and reliability are vital. The new technology will flank the well known and more backhoe oriented CASE DNA boom with overlapping cylinders and outer extendahoe.
Make an Enquiry
AUTO RIDE CONTROL
Safe productivity
- Auto Ride Control reduces loader arm bounce during travel, maintaining maximum material retention on all surfaces for higher travel speeds and reduced journey times. The system offers a choice of 3 settings to match customer preferences or different soil conditions.
- The front axle offers +/-11 degrees of oscillation, to maintain traction on the toughest terrain, improve bucket retention and maintain high productivity.
- Different tyre designs (from industrial to agricultural) and technologies (radial or bias) are available to meet the different requirements for traction or resistance to impact and stress.

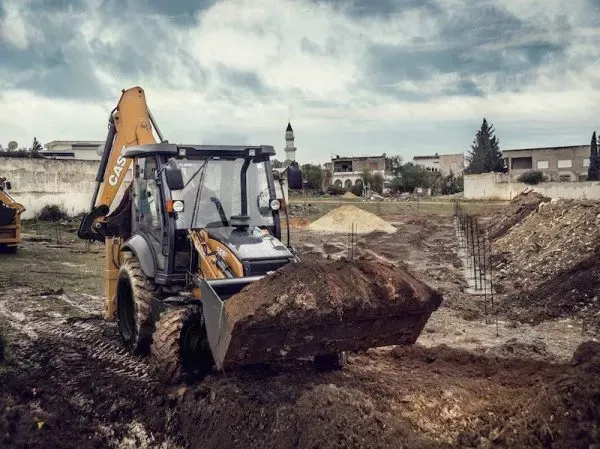

FAST LOADING CYCLE
The job has never been so easy!
Curved front loader arms improve truck loading while mechanical self-levelling assists the operator. Return-to-dig function significantly reduces the operator effort on repetitive loading operations and speeds up the whole cycle. Excellent front loader visibility and the mechanical self-levelling feature make loading and unloading pallets swift and simple.
Make an Enquiry

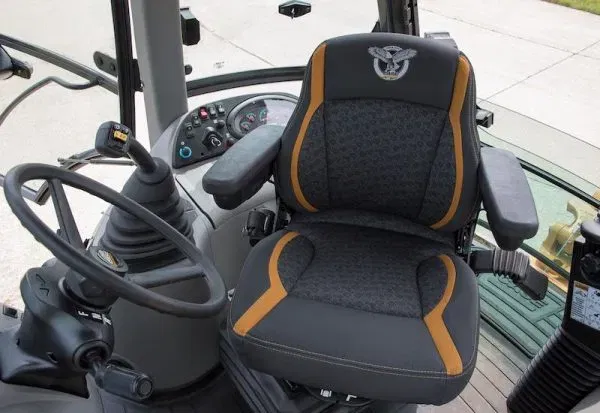

COMFORTABLE AND SAFE CAB
Get settled on your seat
- Pilot control columns and wrist rests are fully adjustable to suit your size.
- The cab sits on insulating mountings, reducing vibration and noise levels to 77 dB(A).
- Excellent visibility equals greater safety: the rear screen is fully tilt-able to provide an unobstructed view of the digging area. The stowed rear screen also provides rain protection in the open position.
- Lumbar adjustment and fully adjustable armrests ensure a comfortable position throughout the working day.
- All four cab windows can be opened partially or fully, to provide maximum ventilation in the cab.
- A new overhead radio position and document storage box, combined with a lockable storage compartment make the CASE cab your comfortable office.
- Wide steps and sturdy grab handles make it easy to get in and out of the cab. Large door apertures without obstacles make access to the seat equally easy. For night working the CASE backhoe loader comes with 10 working lights, including two on each side, for maximum visibility.

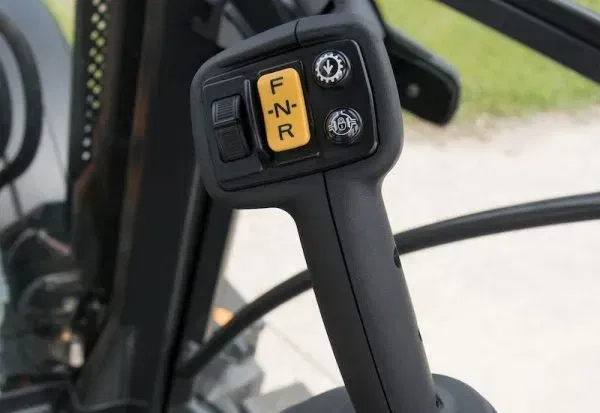

A single control joystick for all the loader functions
- Raise/lower the loader
- Bucket tilt
- Proportional control of the closing and opening of the 4-in-1 bucket or other hydraulic accessories
- Floating bucket position
- Differential lock (except on the 695ST, which features a limited slip differential)
- Cut off transmission switch
- Automatic return to dig position
